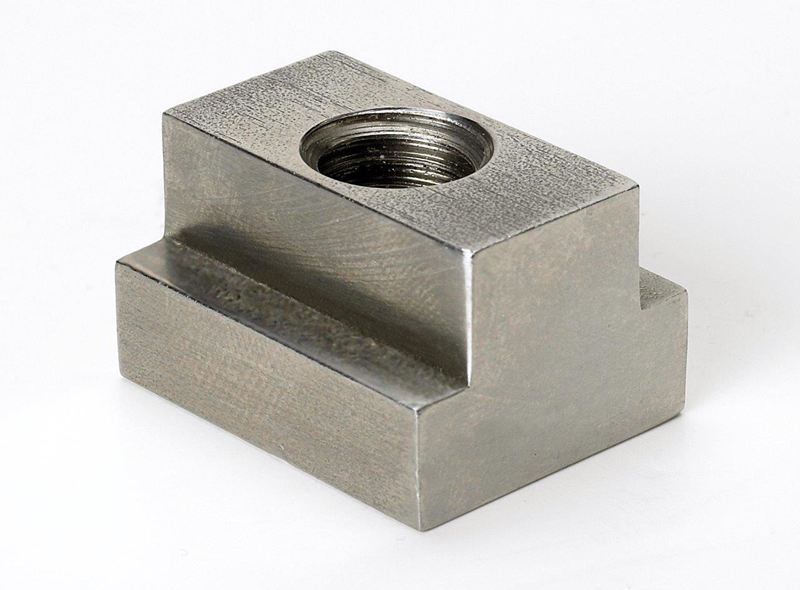

  • Stainless-Steel-Tap-Thru-T-Slot-Nuts

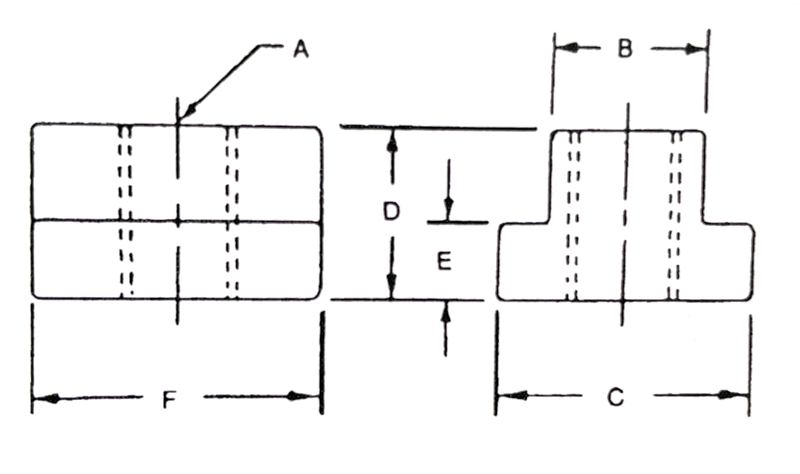

  • Stainless-Steel-Tap-Thru-T-Slot-Nuts-Dimensions
  • Available in case hardened carbon steel with a black oxide finish or stainless steel
  • Imperfect thread at the bottom of the t-nut to prevent damage to machine table
  • Tapped-thru hole available in select stainless steel sizes
  • If the size you require is not listed give us the specifications we will make it for you.
1 - 15 of 15 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification Request Quote Add To Cart
Clear Filter

Thread (A)

Table Slot (B) (in)

C (in)

D (in)

Item #

Item Name

Material

Thread (A)

Table Slot (B)

C

D

E

F

List Price

CAD

N/A Tap-Thru T-Slot Nuts N/A Stainless N/A 5/16-18 N/A 3/8 in N/A 5/8 in N/A 13/32 in N/A 7/32 in N/A 3/4 in $8.25 N/A CAD Icon (for items table)
N/A Tap-Thru T-Slot Nuts N/A Stainless N/A 5/16-18 N/A 7/16 in N/A 11/16 in N/A 3/8 in N/A 1/4 in N/A 11/16 in $9.00 N/A CAD Icon (for items table)
N/A Tap-Thru T-Slot Nuts N/A Stainless N/A 3/8-16 N/A 7/16 in N/A 3/4 in N/A 1/2 in N/A 7/32 in N/A 1 in $9.00 N/A CAD Icon (for items table)
N/A Tap-Thru T-Slot Nuts N/A Stainless N/A 3/8-16 N/A 1/2 in N/A 7/8 in N/A 5/8 in N/A 1/4 in N/A 7/8 in $9.45 N/A CAD Icon (for items table)
N/A Tap-Thru T-Slot Nuts N/A Stainless N/A 3/8-16 N/A 9/16 in N/A 7/8 in N/A 5/8 in N/A 5/16 in N/A 1 1/4 in $10.75 N/A CAD Icon (for items table)
N/A Tap-Thru T-Slot Nuts N/A Stainless N/A 1/2-13 N/A 9/16 in N/A 7/8 in N/A 3/4 in N/A 11/32 in N/A 1 1/4 in $10.85 N/A CAD Icon (for items table)
N/A Tap-Thru T-Slot Nuts N/A Stainless N/A 1/2-13 N/A 5/8 in N/A 1 in N/A 3/4 in N/A 3/8 in N/A 1 1/4 in $11.25 N/A CAD Icon (for items table)
N/A Tap-Thru T-Slot Nuts N/A Stainless N/A 1/2-13 N/A 5/8 in N/A 1 1/8 in N/A 3/4 in N/A 7/16 in N/A 1 1/4 in $11.50 N/A CAD Icon (for items table)
N/A Tap-Thru T-Slot Nuts N/A Stainless N/A 1/2-13 N/A 11/16 in N/A 1 1/8 in N/A 3/4 in N/A 13/32 in N/A 1 1/4 in $15.85 N/A CAD Icon (for items table)
N/A Tap-Thru T-Slot Nuts N/A Stainless N/A 5/8-11 N/A 11/16 in N/A 1 1/8 in N/A 1 1/8 in N/A 15/32 in N/A 1 1/2 in $16.15 N/A CAD Icon (for items table)
N/A Tap-Thru T-Slot Nuts N/A Stainless N/A 5/8-11 N/A 11/16 in N/A 1 1/4 in N/A 1 in N/A 15/32 in N/A 1 1/2 in $15.60 N/A CAD Icon (for items table)
N/A Tap-Thru T-Slot Nuts N/A Stainless N/A 5/8-11 N/A 3/4 in N/A 1 1/4 in N/A 3/4 in N/A 15/32 in N/A 1 1/2 in $17.10 N/A CAD Icon (for items table)
N/A Tap-Thru T-Slot Nuts N/A Stainless N/A 3/4-10 N/A 13/16 in N/A 1 1/4 in N/A 1 in N/A 9/16 in N/A 1 3/4 in $23.90 N/A CAD Icon (for items table)
N/A Tap-Thru T-Slot Nuts N/A Stainless N/A 3/4-10 N/A 13/16 in N/A 1 5/8 in N/A 1 in N/A 5/8 in N/A 1 3/4 in $30.80 N/A CAD Icon (for items table)
N/A Tap-Thru T-Slot Nuts N/A Stainless N/A 3/4-10 N/A 31/32 in N/A 1 5/8 in N/A 1 1/8 in N/A 11/16 in N/A 1 3/4 in $31.20 N/A CAD Icon (for items table)
