Swivel Collar Nuts
Nuts
- Case hardened carbon steel
- Black oxide finish
- Hex head rotates but collar remains stationary upon contact, two piece construction
- Holds rigidly without marring the workpiece
- Used with set up studs, t-slot bolts, and bolts

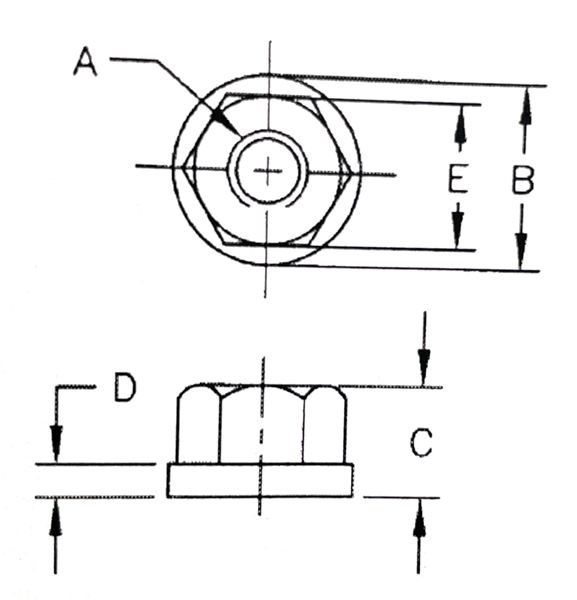

Item # |
Item Name |
Material |
Thread (A) |
E |
B |
C |
D |
List Price |
CAD |
|---|---|---|---|---|---|---|---|---|---|
| SCN-101 | N/A Flange Nut | Material N/A Steel | Thread (A) N/A 1/4-20 | E N/A 1/2 in | B N/A 5/8 in | C N/A 3/8 in | D N/A 1/8 in | $6.45 |
CAD
N/A
|
| SCN-102 | N/A Flange Nut | Material N/A Steel | Thread (A) N/A 5/16-18 | E N/A 9/16 in | B N/A 3/4 in | C N/A 7/16 in | D N/A 9/64 in | $6.85 |
CAD
N/A
|
| SCN-103 | N/A Flange Nut | Material N/A Steel | Thread (A) N/A 3/8-16 | E N/A 11/16 in | B N/A 7/8 in | C N/A 17/32 in | D N/A 5/32 in | $7.50 |
CAD
N/A
|
| SCN-104 | N/A Flange Nut | Material N/A Steel | Thread (A) N/A 1/2-13 | E N/A 7/8 in | B N/A 1 1/8 in | C N/A 23/32 in | D N/A 7/32 in | $8.55 |
CAD
N/A
|
| SCN-105 | N/A Flange Nut | Material N/A Steel | Thread (A) N/A 5/8-11 | E N/A 1 1/16 in | B N/A 1 3/8 in | C N/A 29/32 in | D N/A 1/4 in | $10.85 |
CAD
N/A
|
| SCN-106 | N/A Flange Nut | Material N/A Steel | Thread (A) N/A 3/4-10 | E N/A 1 1/4 in | B N/A 1 5/8 in | C N/A 1 1/64 in | D N/A 9/32 in | $13.45 |
CAD
N/A
|
| SCN-107 | N/A Flange Nut | Material N/A Steel | Thread (A) N/A 7/8-9 | E N/A 1 7/16 in | B N/A 1 3/4 in | C N/A 1 1/8 in | D N/A 7/16 in | $19.90 |
CAD
N/A
|
| SCN-108 | N/A Flange Nut | Material N/A Steel | Thread (A) N/A 1-8 | E N/A 1 5/8 in | B N/A 2 in | C N/A 1 15/64 in | D N/A 15/32 in | $26.25 |
CAD
N/A
|
