Star Knobs On Morton Machine Works

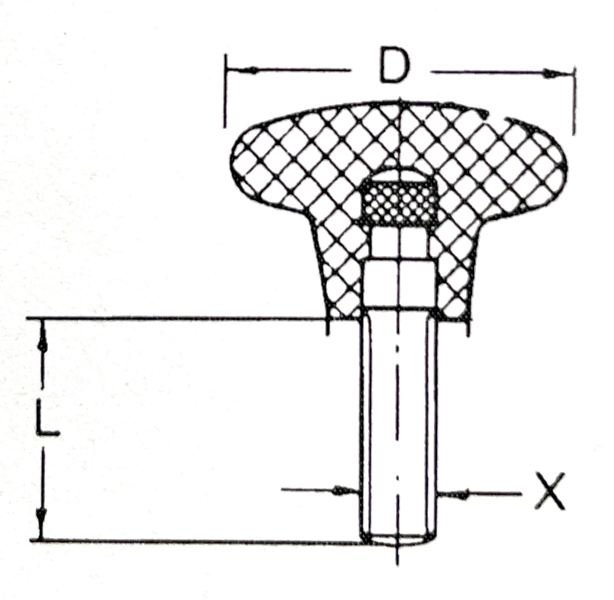

Item #	Item Name	Material	Thread X	Thread Length	D	A	B	C	List Price	CAD
PHK-525	N/A Star Knobs	N/A Black Thermoplastic	N/A 1/4-20	N/A 0.59 in	N/A 1.70 in	N/A 0.65 in	N/A 0.90 in	N/A 0.41 in	$1.80	N/A
PHK-537	N/A Star Knobs	N/A Black Thermoplastic	N/A 3/8-16	N/A 0.59 in	N/A 1.70 in	N/A 0.65 in	N/A 0.90 in	N/A 0.41 in	$1.95	N/A
PHK-506	N/A Star Knobs	N/A Black Thermoplastic	N/A M6 x 1.0	N/A 15 mm	N/A 43 mm	N/A 16.5 mm	N/A 23 mm	N/A 10.5 mm	$2.05	N/A
PHK-508	N/A Star Knobs	N/A Black Thermoplastic	N/A M8 x 1.25	N/A 15 mm	N/A 43 mm	N/A 16.5 mm	N/A 23 mm	N/A 10.5 mm	$2.25	N/A
PHK-601	N/A Star Knobs	N/A Black Thermoplastic	N/A 1/4-20	N/A 0.63 in	N/A 1.70 in	N/A 0.65 in	N/A 0.90 in	N/A 0.41 in	$1.80	N/A
PHK-602	N/A Star Knobs	N/A Black Thermoplastic	N/A 1/4-20	N/A 1.14 in	N/A 1.70 in	N/A 0.65 in	N/A 0.90 in	N/A 0.41 in	$1.90	N/A
PHK-603	N/A Star Knobs	N/A Black Thermoplastic	N/A 1/4-20	N/A 1.34 in	N/A 1.70 in	N/A 0.65 in	N/A 0.90 in	N/A 0.41 in	$1.95	N/A
PHK-604	N/A Star Knobs	N/A Black Thermoplastic	N/A 3/8-16	N/A 0.71 in	N/A 1.70 in	N/A 0.65 in	N/A 0.90 in	N/A 0.41 in	$2.05	N/A
PHK-605	N/A Star Knobs	N/A Black Thermoplastic	N/A 3/8-16	N/A 0.94 in	N/A 1.70 in	N/A 0.65 in	N/A 0.90 in	N/A 0.41 in	$2.15	N/A
PHK-606	N/A Star Knobs	N/A Black Thermoplastic	N/A 3/8-16	N/A 1.42 in	N/A 1.70 in	N/A 0.65 in	N/A 0.90 in	N/A 0.41 in	$2.30	N/A
PHK-607	N/A Star Knobs	N/A Black Thermoplastic	N/A 3/8-16	N/A 1.97 in	N/A 1.70 in	N/A 0.65 in	N/A 0.90 in	N/A 0.41 in	$2.45	N/A

PHK-525

N/A Star Knobs

N/A Black Thermoplastic

N/A 1/4-20

N/A 0.59 in

N/A 1.70 in

N/A 0.65 in

N/A 0.90 in

N/A 0.41 in

$1.80

N/A

PHK-537

N/A Star Knobs

N/A Black Thermoplastic

N/A 3/8-16

N/A 0.59 in

N/A 1.70 in

N/A 0.65 in

N/A 0.90 in

N/A 0.41 in

$1.95

N/A

PHK-506

N/A Star Knobs

N/A Black Thermoplastic

N/A M6 x 1.0

N/A 15 mm

N/A 43 mm

N/A 16.5 mm

N/A 23 mm

N/A 10.5 mm

$2.05

N/A

PHK-508

N/A Star Knobs

N/A Black Thermoplastic

N/A M8 x 1.25

N/A 15 mm

N/A 43 mm

N/A 16.5 mm

N/A 23 mm

N/A 10.5 mm

$2.25

N/A

PHK-601

N/A Star Knobs

N/A Black Thermoplastic

N/A 1/4-20

N/A 0.63 in

N/A 1.70 in

N/A 0.65 in

N/A 0.90 in

N/A 0.41 in

$1.80

N/A

PHK-602

N/A Star Knobs

N/A Black Thermoplastic

N/A 1/4-20

N/A 1.14 in

N/A 1.70 in

N/A 0.65 in

N/A 0.90 in

N/A 0.41 in

$1.90

N/A

PHK-603

N/A Star Knobs

N/A Black Thermoplastic

N/A 1/4-20

N/A 1.34 in

N/A 1.70 in

N/A 0.65 in

N/A 0.90 in

N/A 0.41 in

$1.95

N/A

PHK-604

N/A Star Knobs

N/A Black Thermoplastic

N/A 3/8-16

N/A 0.71 in

N/A 1.70 in

N/A 0.65 in

N/A 0.90 in

N/A 0.41 in

$2.05

N/A

PHK-605

N/A Star Knobs

N/A Black Thermoplastic

N/A 3/8-16

N/A 0.94 in

N/A 1.70 in

N/A 0.65 in

N/A 0.90 in

N/A 0.41 in

$2.15

N/A

PHK-606

N/A Star Knobs

N/A Black Thermoplastic

N/A 3/8-16

N/A 1.42 in

N/A 1.70 in

N/A 0.65 in

N/A 0.90 in

N/A 0.41 in

$2.30

N/A

PHK-607

N/A Star Knobs

N/A Black Thermoplastic

N/A 3/8-16

N/A 1.97 in

N/A 1.70 in

N/A 0.65 in

N/A 0.90 in

N/A 0.41 in

$2.45

N/A
