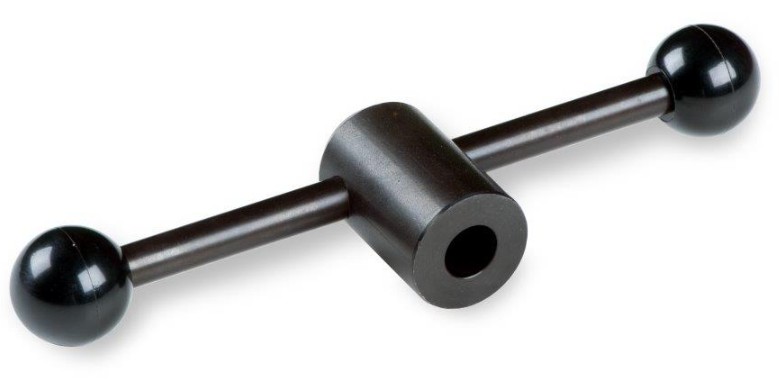

  • Steel-Clamping-Handles-with-Reamed-Hole

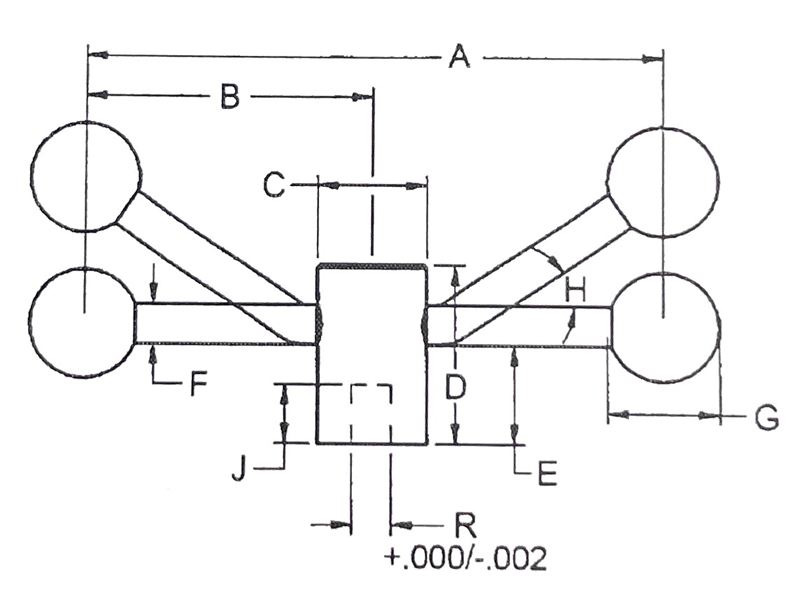

  • Steel-Clamping-Handles-with-Reamed-Hole-Dimensions
  • Reamed hole
  • Available in 3 styles....
    Single side offset, Double side offset, Double side straight
  • Low carbon steel, black oxide finish
  • Solid steel hub on select sizes allows for custom machining
  • Black plastic balls
  • Double straight design can be adjusted for additional leverage by loosening the set screw and sliding the handle to one side.
1 - 18 of 18 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Request Quote Add To Cart

Item #

Item Name

Style

A

B

R Hole

C

D

E

F

G

H

J

List Price

CAD

N/A Steel Clamping Handles with reamed hole N/A Double Straight N/A 4 in N/A 2 in N/A 5/16 in N/A 7/8 in N/A 1 1/2 in N/A 1 in N/A 1/4 in N/A 3/4 in N/A N/A 1/2 in $15.60 N/A CAD Icon (for items table)
N/A Steel Clamping Handles with reamed hole N/A Double Straight N/A 4 in N/A 2 in N/A 3/8 in N/A 7/8 in N/A 1 1/2 in N/A 1 in N/A 1/4 in N/A 3/4 in N/A N/A 1/2 in $15.60 N/A CAD Icon (for items table)
N/A Steel Clamping Handles with reamed hole N/A Double Straight N/A 6 in N/A 3 in N/A 3/8 in N/A 1 1/8 in N/A 1 3/4 in N/A 1 1/16 in N/A 3/8 in N/A 1 in N/A N/A 3/4 in $18.10 N/A CAD Icon (for items table)
N/A Steel Clamping Handles with reamed hole N/A Double Straight N/A 6 in N/A 3 in N/A 1/2 in N/A 1 1/8 in N/A 1 3/4 in N/A 1 1/16 in N/A 3/8 in N/A 1 in N/A N/A 3/4 in $18.10 N/A CAD Icon (for items table)
N/A Steel Clamping Handles with reamed hole N/A Double Straight N/A 6 in N/A 3 in N/A 5/8 in N/A 1 1/8 in N/A 1 3/4 in N/A 1 1/16 in N/A 3/8 in N/A 1 in N/A N/A 3/4 in $18.10 N/A CAD Icon (for items table)
N/A Steel Clamping Handles with reamed hole N/A Double Straight N/A 8 in N/A 4 in N/A 5/8 in N/A 1 3/8 in N/A 2 1/4 in N/A 1 1/4 in N/A 1/2 in N/A 1 3/8 in N/A N/A 1 in $19.95 N/A CAD Icon (for items table)
N/A Steel Clamping Handles with reamed hole N/A Double Straight N/A 8 in N/A 4 in N/A 3/4 in N/A 1 3/8 in N/A 2 1/4 in N/A 1 1/4 in N/A 1/2 in N/A 1 3/8 in N/A N/A 1 in $19.95 N/A CAD Icon (for items table)
N/A Steel Clamping Handles with reamed hole N/A Double Offset N/A 4 in N/A 2 in N/A 3/8 in N/A 7/8 in N/A 1 1/2 in N/A 1 in N/A 1/4 in N/A 3/4 in N/A 30 º N/A 3/4 in $15.85 N/A CAD Icon (for items table)
N/A Steel Clamping Handles with reamed hole N/A Double Offset N/A 6 in N/A 3 in N/A 3/8 in N/A 1 1/8 in N/A 1 3/4 in N/A 1 1/16 in N/A 3/8 in N/A 1 in N/A 30 º N/A 3/4 in $18.40 N/A CAD Icon (for items table)
N/A Steel Clamping Handles with reamed hole N/A Double Offset N/A 6 in N/A 3 in N/A 1/2 in N/A 1 1/8 in N/A 1 3/4 in N/A 1 1/16 in N/A 3/8 in N/A 1 in N/A 30 º N/A 3/4 in $18.40 N/A CAD Icon (for items table)
N/A Steel Clamping Handles with reamed hole N/A Double Offset N/A 6 in N/A 3 in N/A 5/8 in N/A 1 1/8 in N/A 1 3/4 in N/A 1 1/16 in N/A 3/8 in N/A 1 in N/A 30 º N/A 3/4 in $18.40 N/A CAD Icon (for items table)
N/A Steel Clamping Handles with reamed hole N/A Double Offset N/A 8 in N/A 4 in N/A 3/4 in N/A 1 3/8 in N/A 2 1/4 in N/A 1 1/4 in N/A 1/2 in N/A 1 3/8 in N/A 30 º N/A 1 in $22.25 N/A CAD Icon (for items table)
N/A Steel Clamping Handles with reamed hole N/A Single Offset N/A N/A 2 in N/A 3/8 in N/A 7/8 in N/A 1 1/2 in N/A 1 in N/A 1/4 in N/A 3/4 in N/A 30 º N/A 3/4 in $12.75 N/A CAD Icon (for items table)
N/A Steel Clamping Handles with reamed hole N/A Single Offset N/A N/A 3 in N/A 3/8 in N/A 1 1/8 in N/A 1 3/4 in N/A 1 1/16 in N/A 3/8 in N/A 1 in N/A 30 º N/A 3/4 in $14.40 N/A CAD Icon (for items table)
N/A Steel Clamping Handles with reamed hole N/A Single Offset N/A N/A 3 in N/A 1/2 in N/A 1 1/8 in N/A 1 3/4 in N/A 1 1/16 in N/A 3/8 in N/A 1 in N/A 30 º N/A 3/4 in $14.40 N/A CAD Icon (for items table)
N/A Steel Clamping Handles with reamed hole N/A Single Offset N/A N/A 3 in N/A 5/8 in N/A 1 1/8 in N/A 1 3/4 in N/A 1 1/16 in N/A 3/8 in N/A 1 in N/A 30 º N/A 3/4 in $14.40 N/A CAD Icon (for items table)
N/A Steel Clamping Handles with reamed hole N/A Single Offset N/A N/A 4 in N/A 5/8 in N/A 1 3/8 in N/A 2 1/4 in N/A 1 1/4 in N/A 1/2 in N/A 1 3/8 in N/A 30 º N/A 1 in $18.00 N/A CAD Icon (for items table)
N/A Steel Clamping Handles with reamed hole N/A Single Offset N/A N/A 4 in N/A 3/4 in N/A 1 3/8 in N/A 2 1/4 in N/A 1 1/4 in N/A 1/2 in N/A 1 3/8 in N/A 30 º N/A 1 in $18.00 N/A CAD Icon (for items table)
1 - 18 of 18 | Results Per Page | View | Unit of Measure
1
Product Catalog

Product Catalog

Download Our Product Catalog PDF

Morton Machine Works is a manufacturer of quality tooling components supplying to industrial distributors, catalog houses, and OEM's throughout the world. In addition to offering a full line of standard components, Morton has the engineering experience and capabilities to produce custom parts to your specifications.
